from __future__ import annotations
import os
from argparse import Namespace
from uuid import uuid4
import rerun as rr
import rerun.blueprint as rrb
README = """\
# 2D views: Overrides, logged values, defaults, fallbacks
This checks that component and visualizer overrides behave as expected for 2D views.
Specifically that…:
* …Adding and removing overrides/defaults using the blueprint APIs work.
* …Adding and removing overrides/defaults using the UI work.
* …Rendering behaves properly.
---
First things firsts, check that the views in the first column render properly:

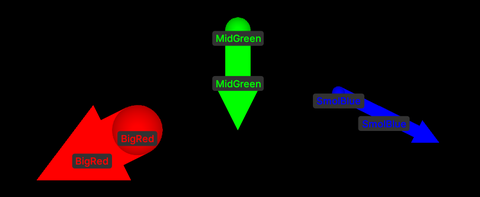

* View **1)** should look like this:
-
* View **2)** should look like this:
-
* View **3)** should look like this:
- NOTE: The color might differ if you're running on the web. That's fine.
-
---
Then we'll modify view **1)**. The goal is to make it look exactly like the view on the top right:
* Double-click any of the arrows to select the arrow batch.
* Remove the extra `Points2D` visualizer.
* Remove all extra component overrides on the remaining `Arrows2D` visualizer.
* You should end up with the exact same view as the one on the right of view **1)**, which itself should look exactly like view **2)**.
---
Then we'll modify view **2)**. The goal is to make it look exactly like the view on the middle right:
* Double-click any of the arrows to select the arrow batch.
* Remove all extra component defaults on the `Arrows2D` visualizer.
* You should end up with the exact same view as the one on the right of view **2)**, which itself should look exactly like view **3)**.
---
Finally, we'll modify view **3)**. The goal is to make it look exactly like the view on the bottom right:
* Double-click any of the arrows to select the arrow batch.
* Add overrides to the view until you end up with the exact same view as the one on the right of view **3)**.
* The resulting view should look like this:
-
---
👏👏👏
"""
def log_readme() -> None:
rr.log("readme", rr.TextDocument(README, media_type=rr.MediaType.MARKDOWN), static=True)
def log_boxes() -> None:
rr.log(
"arrows",
rr.Arrows2D(origins=[[-2.0, 0.0], [0.0, 0.0], [2.0, 0.0]], vectors=[[-2.0, 1.0], [0.0, 2.0], [2.0, 1.0]]),
)
def run(args: Namespace) -> None:
rr.script_setup(args, f"{os.path.basename(__file__)}", recording_id=uuid4())
log_readme()
log_boxes()
visual_bounds = rrb.VisualBounds2D(x_range=[-5.5, 5.5], y_range=[-3.0, 3.0])
overrides = {
"arrows": [
rrb.VisualizerOverrides([
rrb.visualizers.Arrows2D,
rrb.visualizers.Points2D,
]),
rr.components.ColorBatch([[255, 0, 0], [0, 255, 0], [0, 0, 255]]),
rr.components.RadiusBatch([0.5, 0.25, 0.125]),
rr.components.TextBatch(["BigRed", "MidGreen", "SmolBlue"]),
rr.components.Position2DBatch([[-2.0, 1.5], [0.0, -0.5], [2.0, 0.75]]),
rr.components.Vector2DBatch([[-2.0, 1.0], [0.0, 2.0], [2.0, 1.0]]),
]
}
defaults = [
rr.components.ColorBatch([[255, 255, 0], [0, 255, 255], [255, 0, 255]]),
rr.components.RadiusBatch([0.1, 0.2, 0.3]),
rr.components.TextBatch(["TeenyYellow", "AverageCyan", "GigaPurple"]),
]
blueprint = rrb.Blueprint(
rrb.Grid(
rrb.TextDocumentView(origin="readme", name="Instructions"),
rrb.Vertical(
rrb.Spatial2DView(
name="1) Overrides, logged values & defaults",
visual_bounds=visual_bounds,
overrides=overrides,
defaults=defaults,
),
rrb.Spatial2DView(
name="2) Logged values & defaults",
visual_bounds=visual_bounds,
defaults=defaults,
),
rrb.Spatial2DView(
name="3) Logged values only",
visual_bounds=visual_bounds,
),
),
rrb.Vertical(
rrb.Spatial2DView(
name="What you should get after removing overrides from 1)",
visual_bounds=visual_bounds,
defaults=defaults,
),
rrb.Spatial2DView(
name="What you should get after removing defaults from 2)",
visual_bounds=visual_bounds,
),
rrb.Spatial2DView(
name="What you should get after adding overrides & defaults to 3)",
visual_bounds=visual_bounds,
overrides={
"arrows": [
rrb.VisualizerOverrides([
rrb.visualizers.Arrows2D,
rrb.visualizers.Points2D,
]),
rr.components.Color([255, 255, 255]),
rr.components.Radius(0.1),
rr.components.Text("Cerberus"),
rr.components.Position2D([0.0, 0.0]),
]
},
),
),
grid_columns=3,
column_shares=[1, 1, 1],
),
)
rr.send_blueprint(blueprint, make_active=True, make_default=True)
if __name__ == "__main__":
import argparse
parser = argparse.ArgumentParser(description="Interactive release checklist")
rr.script_add_args(parser)
args = parser.parse_args()
run(args)
